High-Current Industrial Plating Rectifier Systems

DNS Power Systems manufactures heavy-duty, high-precision Plating Rectifiers specifically engineered for advanced surface finishing, electroplating, anodizing, and electrolysis processes. Utilizing cutting-edge Switch-Mode (IGBT) or Thyristor (SCR) topologies, our industrial-grade power supplies convert alternating current (AC) from the main grid into a highly stable, high-amperage direct current (DC) required for optimal electrochemical deposition.

Our rectifiers deliver ultra-stable DC output with low ripple voltage, ensuring exceptional coating uniformity, precise thickness control, and brilliant finishing quality while maximizing overall grid energy efficiency.

Engineered for Harsh Electrochemical Environments

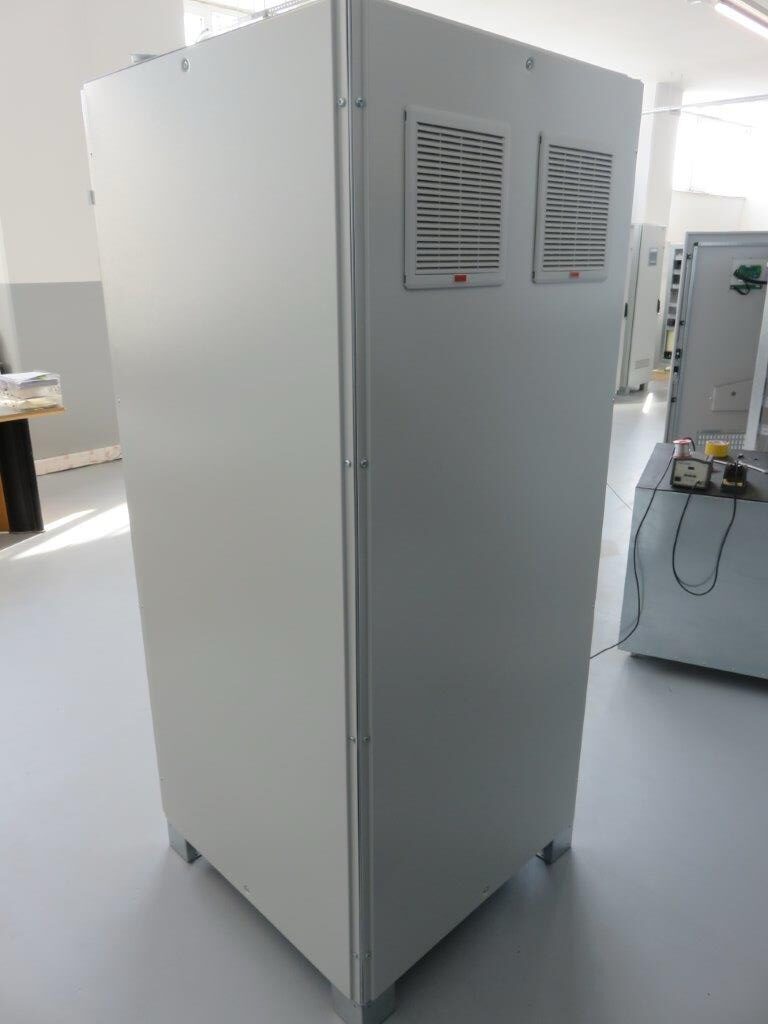

Built to withstand the extremely harsh, corrosive, and humid environments of chemical plating shops, these high-amperage systems feature robust environmental sealing and smart thermal protection mechanisms for continuous, 24/7 heavy-duty operations. To ensure seamless automation integration, DNS rectifiers are equipped with comprehensive remote control and monitoring options, including RS485, Modbus, and standard PLC interfaces, allowing operators to control voltage and current precision with absolute accuracy.

Parameter	Specification
Output Current Range	100 A – 20,000 A (High-current custom configurations)
Output Voltage Range	6V / 12V / 15V / 24V / 48V DC (Stable regulation)
Technology / Control	High-Frequency IGBT Switch-Mode or Thyristor SCR Control
Ripple Factor	≤ 1% to 3% (Ensures premium electroplating quality)
Cooling & Protection	Forced Air or Water Cooled / Sealed Anti-Corrosion IP54 Cabinets

Usage Areas

These systems are widely used in heavy industries where high-current surface treatments and electrochemical processes are required:

Electroplating (Galvanization) Plants: For coating steel, iron, or other metals with zinc, nickel, copper, chrome, gold, or silver to prevent corrosion and extend product lifespan.

Automotive and Aerospace Industries: For hard chrome plating of wear-resistant components like engine parts, hydraulic shafts, and aircraft landing gears.

Electronics and PCB (Printed Circuit Board) Manufacturing: For precise, uniform copper, nickel, or gold plating on the micro-tracks of electronic circuit boards used in smartphones, computers, and medical devices.

Aluminum Anodizing Plants: For creating a protective and decorative oxide layer on architectural profiles, defense industry parts, and consumer cookware.

Heavy Electrochemistry and Electrolysis: Used in hydrogen production (water electrolysis), copper foil manufacturing, chlor-alkali industries, and metal refining/electrowinning.

The differences between traditional & Modern Rectifier systems.

DNS Power Systems has two types of technologies SCR (Thrystor based) systems to high-efficiency, modern IGBT (Switch Mode).

The differences between traditional & Modern Rectifier systems.

DNS Power Systems has two types of technologies SCR (Thrystor based) systems to high-efficiency, modern IGBT (Switch Mode).

Feature	Legacy SCR (Thyristor) Systems	Modern IGBT (Switch-Mode) Systems
Energy Efficiency	Lower efficiency (~75% – 80%).	High efficiency (~93% – 96%, saving up to 30% energy).
Current Ripple	Between 3% and 5% (can cause surface roughness).	Less than 1% – 2% (ensures flawless, uniform coating).
Size & Weight	Large, heavy, and bulky due to massive transformers.	Compact, lightweight, and modular design.
Control Capabilities	Limited wave-form adjustments and slow response time.	Fully integrated with PLCs and automation; precise digital control.
